Open OCR Failure Benchmark / v0.1

Confidence is not structure.

Eight reproducible Tesseract runs show what changes when the same public baseline meets a handwriting form, a census table, a faded notebook and a clean government form. Raw text, TSV, source hashes and calculations are public. Tesseract is the benchmark baseline, not the paid DocUnlocked recovery engine.

Download results CSV Reproduce on GitHub

What this is:Open evidence about where a fixed OCR baseline loses confidence or structure.

What this is not:A preview, benchmark score or quality claim for the paid DocUnlocked pipeline.

Have a difficult PDF? Run the free source-file check

4public source cases

2fixed OCR profiles

8raw benchmark runs

0per-document tuning

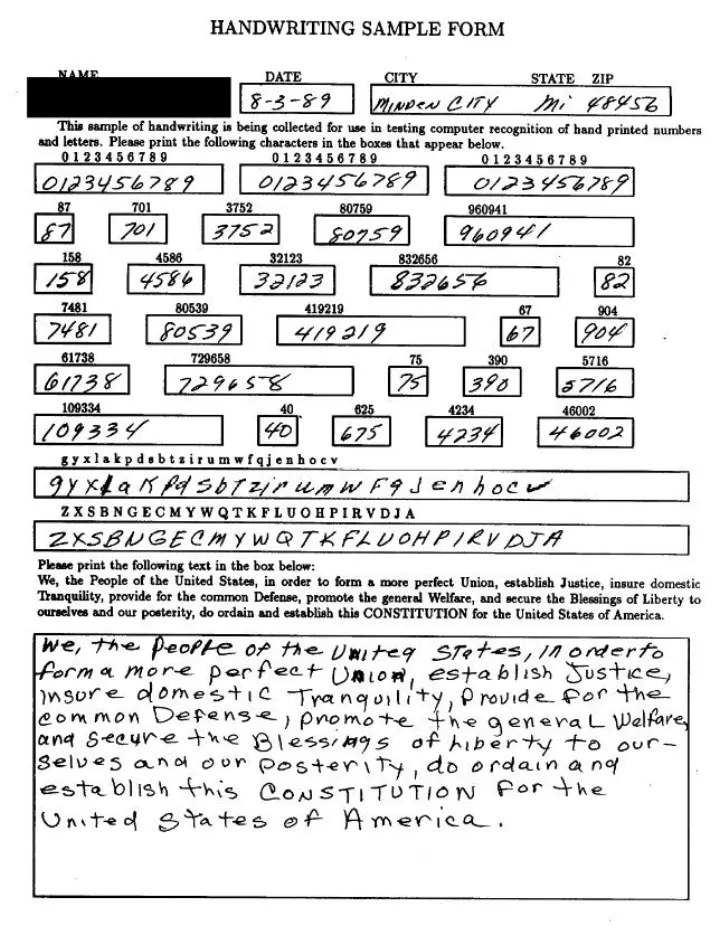

NIST handwriting sample used in the OCR failure benchmark

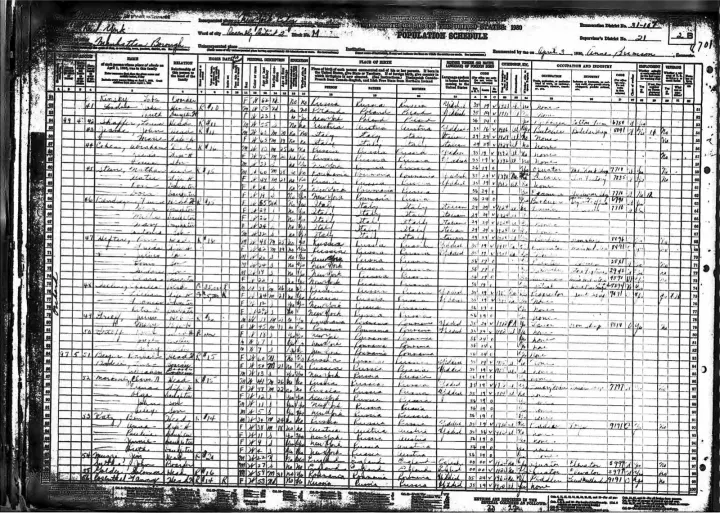

1930 Census schedule used in the OCR failure benchmark

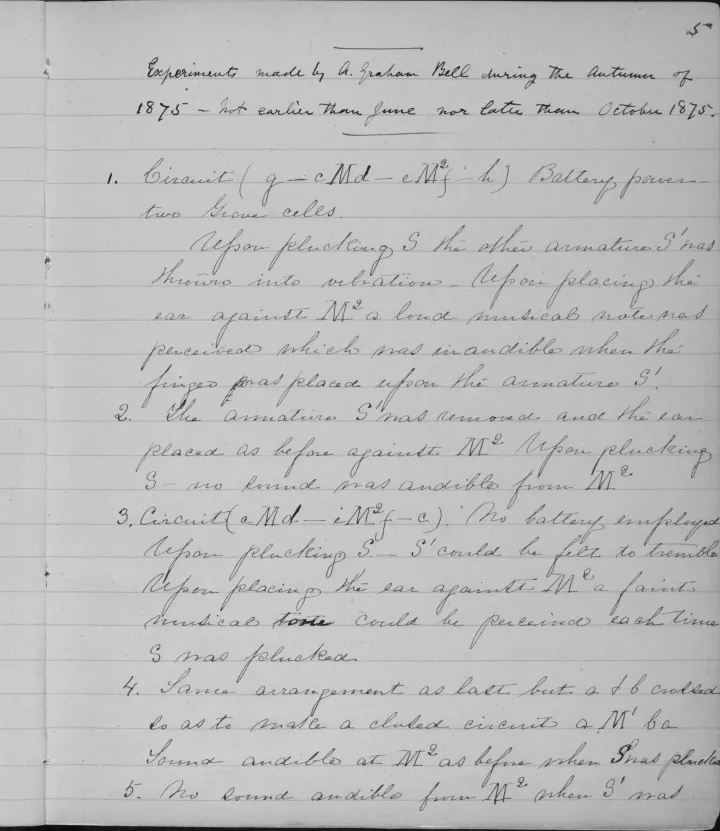

Alexander Graham Bell notebook page used in the OCR failure benchmark

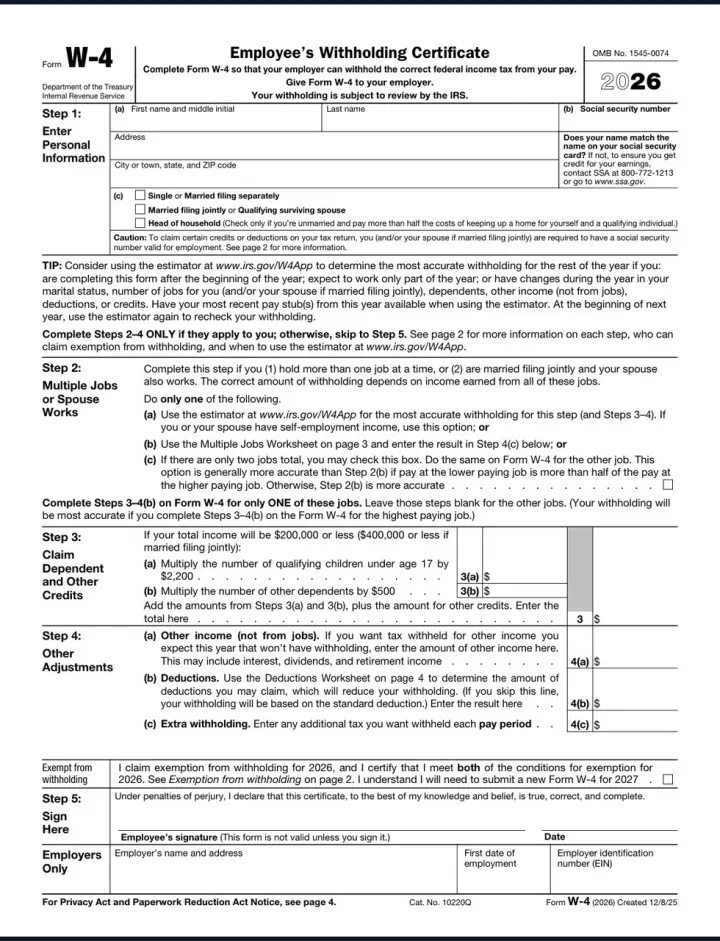

IRS W-4 form used in the OCR failure benchmark

Measured findings

The difficult pages produce more uncertainty, not merely less text.

The percentages below are the share of recognized words below 50 in Tesseract's internal confidence signal. They are not character or word accuracy scores.

1930 Census

92.4%

Bell notebook

87.4%

NIST SD19

55.2%

IRS W-4

7.1%

The table fails structurally

PSM 11 finds 531 word tokens in the Census schedule, but the plain-text output does not retain row identity or column attachment. More extracted tokens do not reconstruct a reliable census record.

The page profile changes the answer

NIST PSM 6 returns 67 words and emphasizes the handwritten passage. PSM 11 returns 218 words and surfaces more printed labels and number rows. A single baseline output hides this configuration sensitivity.

High confidence still loses semantics

The W-4 PSM 11 run reports 90.04 mean confidence across 792 words. Its plain text still cannot represent checkbox state or guarantee label-to-field relationships.

Fluent fragments need source review

The Bell outputs contain plausible English-like fragments while 85.3% to 87.4% of recognized words remain below 50 confidence. Review against the page image is part of the recovery task.

Complete metrics

Every published run.

Case	PSM	Words	Characters	Lines	Mean confidence	Median	Below 50
NIST SD19	6	67	414	14	45.81	41.21	55.22%
NIST SD19	11	218	1,418	72	65.15	83.88	33.94%
1930 Census	6	343	1,248	29	24.65	23.36	92.42%
1930 Census	11	531	2,394	355	29.32	29.17	83.99%
Bell notebook	6	151	648	20	25.84	22.61	87.42%
Bell notebook	11	143	577	47	26.31	23.42	85.31%
IRS W-4	6	784	4,458	55	86.75	95.25	7.14%
IRS W-4	11	792	4,685	103	90.04	95.70	3.41%

Open data

Inspect every raw output.

Summary CSV · Summary JSON · Source manifest and hashes

Reproducible protocol

Fixed baseline, declared limits.

Tesseract 5.5.2Open-source baseline with the English model.
OEM 1LSTM engine for every run.
PSM 6 and 11Uniform block versus sparse text.
No tuningNo preprocessing or case-specific configuration.

This release does not report character error rate or word error rate because a complete independently verified ground truth is not bundled for all four cases. It is a transparent failure-observation dataset, not a universal leaderboard.

Use the evidence
